How to Convert Ac to Dc for Led Lights

In order to use an LED light, you need to have a power source that can provide enough voltage and current. For example, if you are using a 12-volt LED light, then you will need a DC power source.


You can convert an AC power source to DC using a battery or a converter. In this article, we will discuss the different ways on how to convert ac to dc for led lights.

Summary: Converting AC (alternating current) to DC (direct current) for LED lights is a crucial step to ensure their proper functioning, as LEDs are designed to operate on low-voltage DC power. To convert AC to DC, a power supply or adapter is needed, which takes the high-voltage AC from the electrical grid and transforms it into the low-voltage DC required by LED lights.

To use a power supply or adapter for this conversion, first determine the appropriate voltage and current rating for the specific LED light or strip you are using. This information can typically be found in the product documentation or on the product label. Once you have identified the correct voltage and current requirements, select a compatible power supply or adapter designed for LED lights.

Connect the input side of the power supply to the AC power source, such as a wall outlet or electrical panel, following the manufacturer’s instructions. Connect the output side of the power supply, which provides the DC voltage, to the LED light or strip. Once the connections are made, the power supply or adapter will convert the AC power to the appropriate DC voltage, allowing the LED lights to operate safely and efficiently.

6 Benefits of DC Lighting Over AC

There are many benefits of using DC power for LED lights over AC power. Some of these benefits include:

1. Increased Efficiency:

DC lighting is more efficient than AC lighting because it doesn’t have the energy losses associated with AC power. In an AC lighting system, some of the energy is lost as heat due to the current flowing through the wires. DC lighting doesn’t​t have this problem, so all of the energy goes into producing light.

2. More Environmentally Friendly:

Since DC lighting is more efficient, it also results in less waste heat. This makes it more environmentally friendly than AC lighting, contributing to climate change.


3. Less Maintenance:

DC lighting requires less maintenance because there are no transformers or other components that can fail and cause power outages. Also, since DC lighting is more efficient, it produces less heat, which means there are fewer opportunities for component failure due to overheating.

4. Greater Flexibility:

DC lighting is more flexible than AC lighting because it can be powered by various sources, including renewable energy sources like solar panels and wind turbines. This gives you more options for powering your lights, which can be important if you’re trying to be eco-friendly or live off the grid.

5. Increased lifespan:

DC lighting also has a longer lifespan than AC lighting. This is because there are no moving parts in DC lights, which means fewer opportunities for things to go wrong. Additionally, DC lights don’t emit any harmful ultraviolet (UV) radiation, which can cause premature fading in some materials.

6. Compatibility:

DC lighting is compatible with a wide range of devices, including LED lights, Home Appliances, Laptops, and solar panels. This makes it a good choice to upgrade your existing lighting system or add new lights to your home.

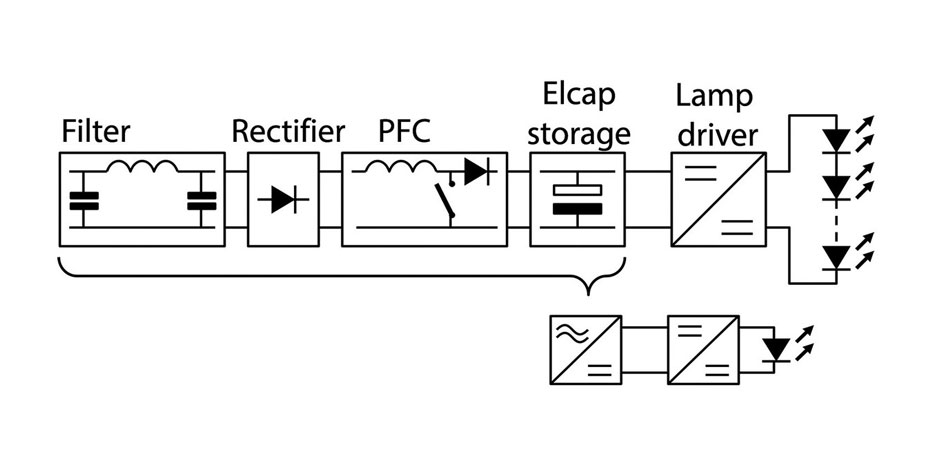

How Does the DC Lighting System Works?

A direct current or DC lighting system is the more common type of lighting system. In this type of system, electricity flows in one direction only through the conductor. A DC lighting system usually has a positive and negative terminal.


The positive terminal is connected to the anode, while the negative terminal is connected to the cathode. The electric current flows from the positive terminal to the negative terminal.

Difference Between Ac And Dc Led Lights

The main difference between AC and DC LED lights is that AC LED alternating current powers lights while DC LED a direct current powers lights. AC LED lights are more common because the standard mains power supply can power them.

However, DC LED lights are becoming more popular because they are more efficient than AC LED lights. DC LED lights are more compatible with renewable energy sources like solar panels and wind turbines.

What Tools and Supplies Needed?

To convert AC power to DC power, you will need:

1. A power source

2. A converter

3. Wiring

4. An LED light

5. A switch (optional)

6. A resistor (optional)

Step by Step Procedure: How to Convert AC to DC for LED Lights

Step 1: Determine Your Power Source.

The most common power source is a wall outlet, but other options include batteries, solar panels, and generators. Make sure that your power source can provide enough power for your LED light.

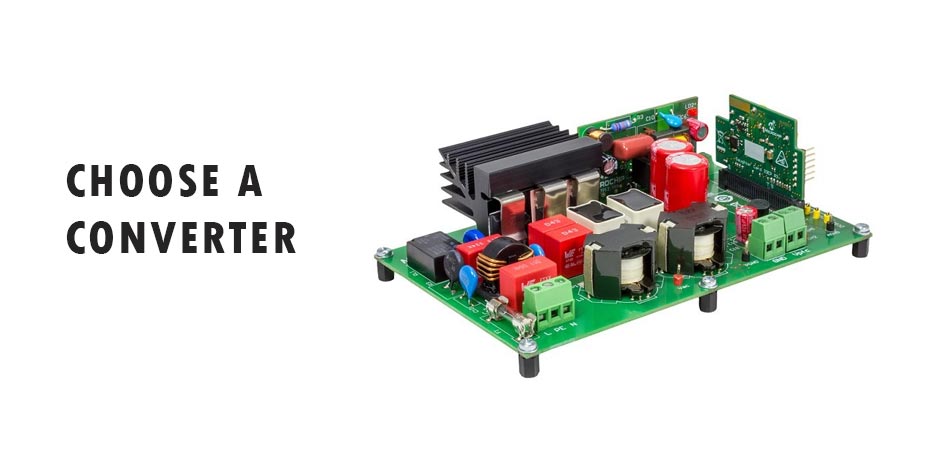

Step 2: Choose a Converter.

There are many types of converters available, so select one compatible with your power source and LED light. Some converters are also equipped with a switch and resistor.


Step 3: Wire the Converter.

Connect the positive wire from the converter to the positive terminal of your power source, and connect the negative wire from the converter to the negative terminal. Then, connect both wires from the converter to your LED light.

Step 4: Test Your Setup.

Turn on your power source and flip the switch (if applicable). Your LED light should now be illuminated. If your LED light does not turn on, check the connections and ensure that everything is properly wired. You may also need to adjust the position of the switch.

Step 5: Enjoy Your LED Light!

There are many benefits to using LED lights, including energy efficiency and a long lifespan. Now that you know how to convert AC to DC for LED lights, you can enjoy these benefits in your home or office. Thanks for reading!

Common Mistakes to Avoid When Converting Ac to Dc for Led Lights

1. Not choosing the right power source. Select a power source that can provide enough power for your led lights. Ensure to check the power source’s capacity (watts) and voltage (volts) to avoid any compatibility issues.

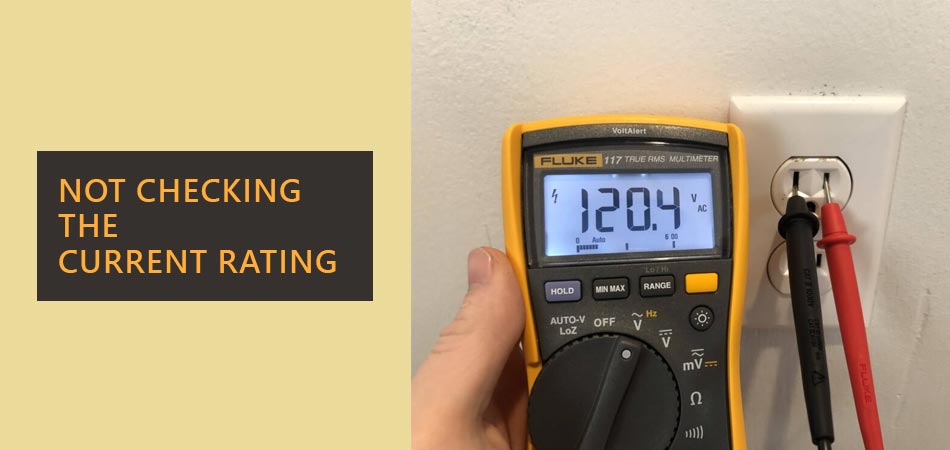

2. Not checking the current rating. When converting AC to DC for LED lights, it is important to check the current rating (in amps). This will ensure that your LED lights do not overload the power source and cause a fire hazard.


3. Not wiring the converter correctly. Connect the positive wire from the converter to the positive terminal of your power source, and connect the negative wire from the converter to the negative terminal. Then, connect both wires from the converter to your LED light.

4. Not testing your setup. Turn on your power source and flip the switch (if applicable). Your LED light should now be illuminated. If your LED light does not turn on, check the connections and ensure that everything is properly wired.

5. Not using a resistor. If your LED light is not dimmable, you may need to use a resistor to regulate the current. Without a resistor, your LED light may flicker or not work at all.

6. Not using the proper power supply. Make sure to use a DC power supply when converting AC to DC for LED lights. Using an AC power supply will damage your LED light and could cause a fire hazard.

7. Not disposing of the converter properly. After you have finished using the converter, dispose of it properly. Do not throw it in the trash; contact your local recycling center to find out how to dispose of electronic waste properly.

Safety Precautions and Warnings

1. Always follow the manufacturer’s instructions for your specific power source, converter, and LED light.

2. Be sure to connect the wires correctly. Incorrect wiring can cause electrical shock or fire.

3. Never look directly into an LED light. The bright light can damage your eyesight.

4. Do not touch any part of the circuit while powered on. You could receive an electrical shock.

5. Unplug the power source before making any changes to the circuit.

6. Always dispose of batteries properly. Batteries can leak chemicals that are harmful to the environment.

7. Do not use more than one converter per outlet. Overloading an outlet can cause a fire.

8. Do not use damaged wiring. Wires that are frayed or have exposed copper can cause electrical shock.

How to Convert AC to DC Using Full and Half Wave?

Converting an Alternating Current (AC) signal into a Direct Current (DC) signal is an important step in many electrical systems. This process can be done with either full or half-wave rectification, depending on the desired output.

Full wave rectification is a more efficient method of converting AC to DC as it uses both phases of the AC signal – the positive and negative cycles. To do this, two diodes are used to form what’s known as a bridge circuit. As each diode only allows current to flow in one direction, the alternating positive and negative signals are canceled out and converted into a single direct current.

Half-wave rectification is another technique for converting an AC signal into a DC one but involves fewer components since only one diode is required instead of two. As with full wave rectification, the alternating positive and negative signals are canceled out however, it will only convert half of the input signal (the positive cycle).

This results in less efficiency overall but still produces a usable DC voltage for many applications. Both techniques have their benefits and drawbacks depending on the specific application; understanding how each work can help you decide which one best suits your needs!

How Does a Full-Wave Bridge Rectifier Work?

A full-wave bridge rectifier is an electronic device that converts alternating current (AC) into direct current (DC). The working principle behind this is to use four diodes arranged in a bridge circuit configuration. This allows both the positive and negative halves of the AC waveform to be rectified, resulting in a smooth DC output with no ripple.

The four diodes in the bridge are arranged as follows: two diodes are connected from the AC source to the load with one diode on each side, while the other two connections between them in series. As each half cycle of the AC input passes through one side of the bridge, it’s rectified by the two diodes and then passes through to the load on its opposite side.

This results in a smoother DC output than what would be obtained with a single-diode full-wave rectifier since both halves of the waveform are being used simultaneously. Additionally, since only four components are needed, it can make for a simpler and more cost-effective design compared to other types of rectifiers.

Between a Center-Tapped Transformer and a Bridge Rectifier

The difference between a center-tapped transformer and a bridge rectifier is the number of diodes used to convert alternating current (AC) into direct current (DC). A center-tapped transformer uses two diodes, while a bridge rectifier requires four. A center-tapped transformer also requires an additional component called a center tap, which is an extra winding in the middle of the primary winding, usually connected directly to the ground.

This allows for two separate half-wave rectifiers, which can be connected in series with one another to create full-wave rectification. This results in one DC output but does not provide as much efficiency as a bridge rectifier since only one side of the AC waveform is being used. On the other hand, a bridge rectifier uses four diodes arranged in what’s known as a bridge circuit configuration. This allows both sides of the AC waveform to be utilized, resulting in higher efficiency and smoother DC output with no ripple compared to the single diode or center-tapped transformer alternatives.

Frequently Asked Questions

Will Led Lights Work on AC and DC Power?

There are a few factors to consider when deciding whether or not LED lights will work on AC and DC power.

First, the wattage of the LED light. Generally, lower wattage LED lights will work on AC power, while higher wattage LED lights will require DC power.

Second, the voltage of the LED light. Most LED lights are rated for between 12 and 24 volts, but some are rated for up to 48 volts.

Finally, the type of connector that the LED light uses. Most LED lights use a connector that is compatible with both AC and DC power.

Can I Use 12V AC for Led Lights?

Yes, 12V AC can be used to power LED lights. However, it is important to note that not all LED lights are compatible with 12V AC, so it is important to consult the product specifications before using the light in this manner. Additionally, using 12V AC for LED lights can result in reduced lifespan and performance of the light fixture. It is best to use a dedicated UL/CSA certified electrical outlet for use with LED lights, as this will reduce the risk of fire and other damage.

What is the DC Voltage of Led Bulb?

LED bulbs use a variety of different voltages, depending on the type of LED bulb and the configuration of the electrical system. The DC voltage of a LED bulb is the voltage used to power the LED bulb. LED bulbs typically use a single voltage (usually between 5 and 12 volts), but they can also use two or more different voltages to power multiple LEDs.

What Converts AC to DC in a Charger?

A charger converts AC to DC in order to charge electronic devices. The charger uses an inverter to change the AC voltage into a more usable DC voltage, which is then sent to the device’s battery.

Final Thoughts

Converting AC to DC is important because it allows us to use LED lights that are more energy-efficient than traditional incandescent light bulbs. LED lights to run on direct current (DC), while most household appliances run on alternating current (AC).

Converting AC to DC allows us to use these more efficient lights without modifying our home’s electrical wiring. There are several ways that you can convert AC to DC. Converting AC to DC for LED lights is a great way to save your energy bill and help the environment.

We hope this article has helped you understand how to convert ac to dc for led lights and shown you how easy it is to do yourself. If you have any questions, please don’t hesitate to reach out to us. Thanks for reading!
